Micro Mesh - Integrated LED Driver Architecture

(Holo-FC 6.25)

Invisible + Ultra-Transparent LED Display

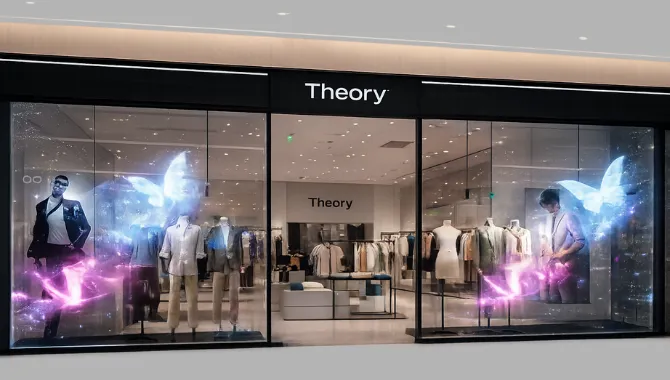

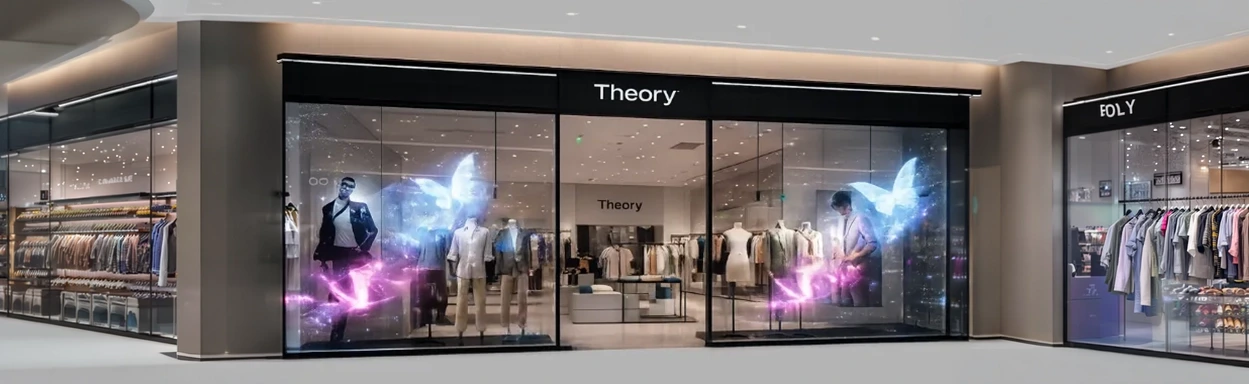

Fixed holographic LED screen turns storefront glass into a high-impact media canvas — ultra-transparent, seamlessly invisible when off, and engineered for premium retail, events, and branding.

Send Inquiry Now

Integrated LED Driver Architecture

LED driver fully integrated within the module structure, eliminating external driver boards
Simplifies installation, improves system stability, and reduces failure points
Optimized for long-term fixed installations in commercial environments

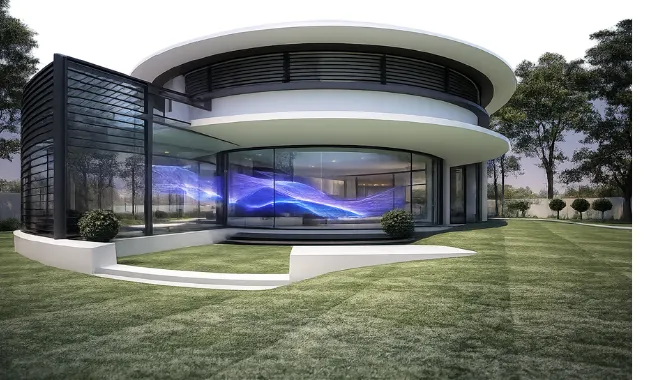

High Brightness for Daytime Visibility

2500 nits brightness for strong visual impact in high-ambient-light environments

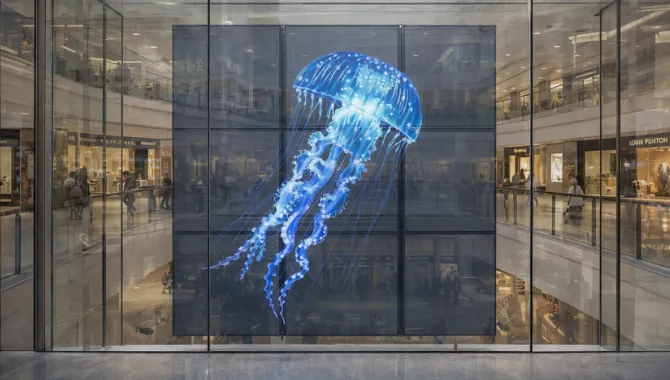

Clear content visibility even in storefronts and glass façades facing daylight

Standard Module Sizes for Scalable Design

Available module sizes:

2000mm × 250mm
2500mm × 250mm

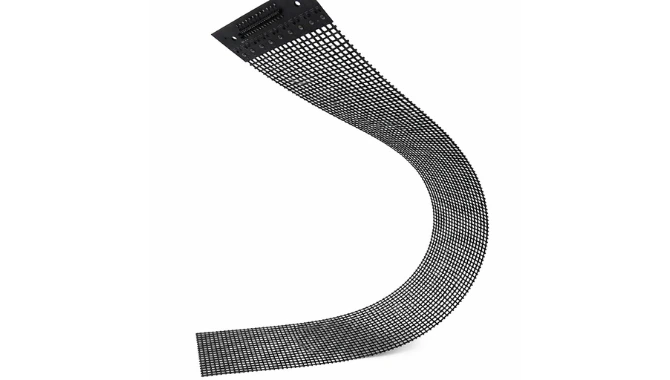

Modular & Customizable

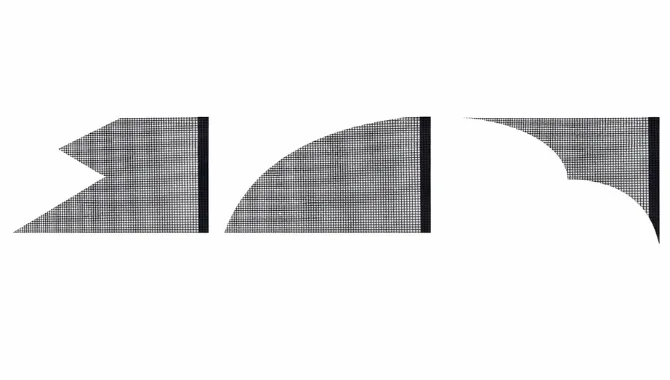

Modules can be cut or bent for curved glass or irregular shapes.
Supports creative, non-rectangular installations for brand experiences.

Design & Performance Highlights

Ultra-Thin

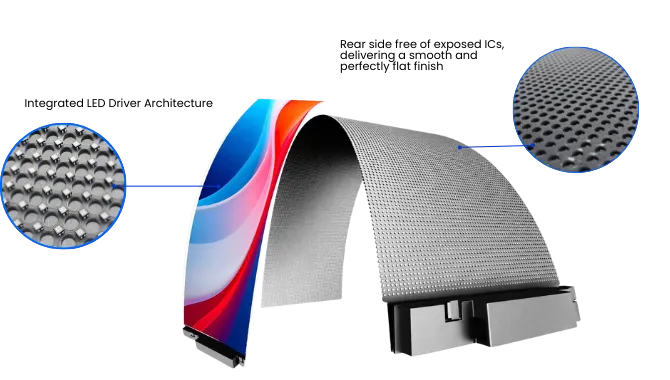

Pliable, Flexional

Lightweight

Spatial floating image

HD display quality

Minimal Installation & Maintenance

SPECIFICATION

Product	Holo-6.25
Pixel Pitch (mm)(horizontal / vertical)	P6.25
Pixel Density(dot/m²)	25600
Transparency Rate	90%
Display Dimension (mm) (w*h)	250×2000	250×2500
Resolution (dot) (w*h)	40×320/40×400
Brightness(cd/m²)	≥5000
Weight(Kg/m²)	5
Scanning Mode	Static
Lifespan	≥100,000.00 hours
Pixel Configuration	16bit
Maximum Power Consumption (w/m²)	1000
Average Power Consumption (w/m²)	375
Input Voltage	AC100~240V 50/60 Hz
Working Voltage for Module	DC 4.2V ± 0.2V
Working Temperature	0°C~50°C
Working Humidity	20%~85%
Storage Temperature	-20°C~60°C
Storage Humidity	10%~85%
Protection Degree	IP20
Installation Environment	Indoor
